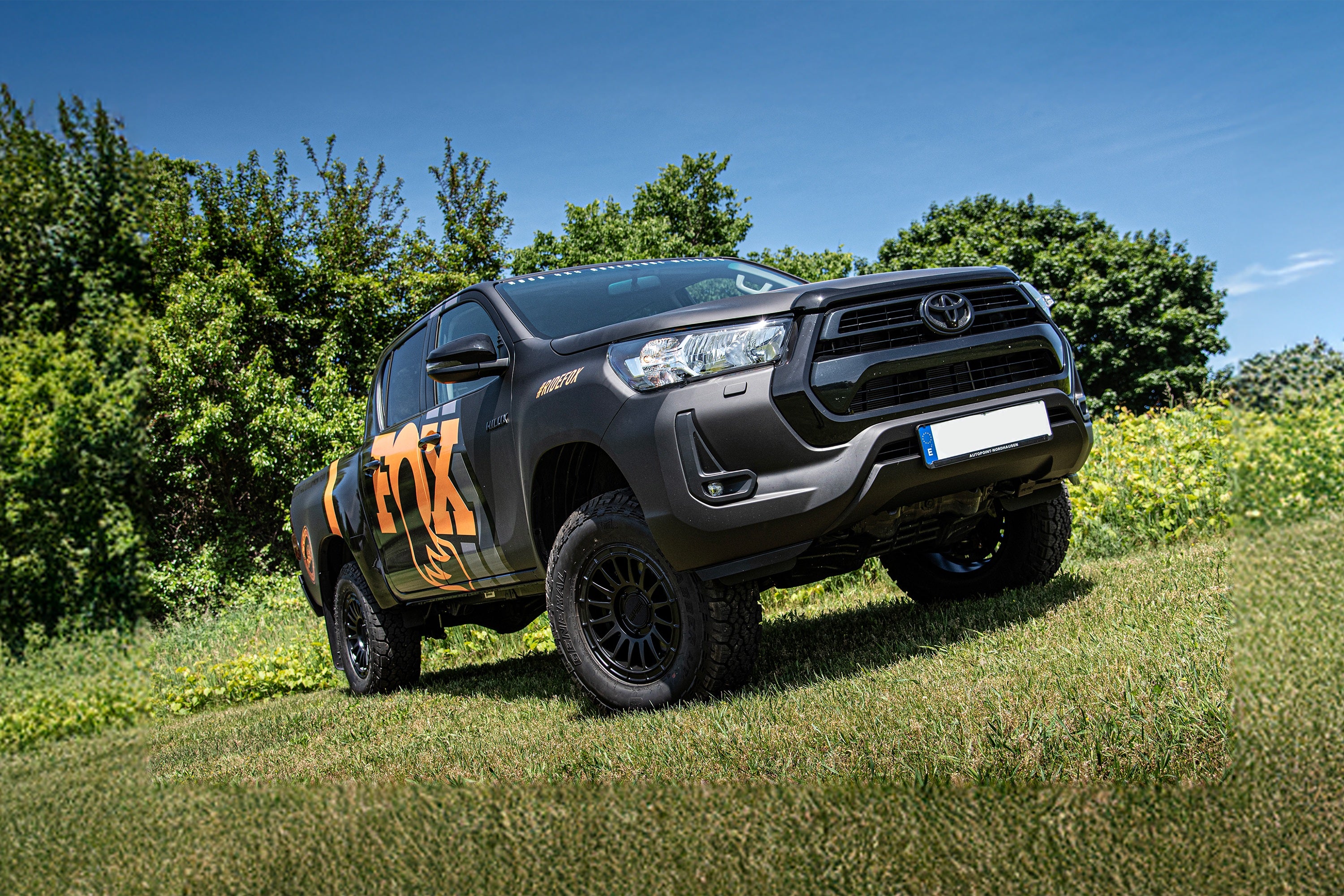

BDS introduces a high-performance suspension upgrade for the popular Toyota Hilux, designed to deliver exceptional ride quality, strength, and off-road capability.

This system features heavy-duty BDS upper control arms paired with your choice of Fox Performance Series coil-over options:

• Fox 2.0 Snap Ring Struts
• Fox 2.5 Performance Coil-Overs
• Fox 2.5 Performance Elite Coil-Overs

Each setup is built to handle tough terrain while improving handling and control, both on and off the road. The rear of the vehicle benefits from a collaboration between BDS Engineering and Fox Ride Engineering, with rear shocks precisely tuned to work in harmony with the Hilux's aggressive factory spring rate.

This ensures a balanced, responsive ride and maximum performance under load or during spirited driving.

Whether you're loading up, heading off-road, or simply want a more composed ride, BDS delivers the suspension solution the Hilux was meant to have.

Features and Benefits:

• 2-3 inches of lift depending on the front coil over selected.
• BDS upper control arms increase strength and allow for more suspension travel.
• Your choice of Fox coil-over options for customizable performance
• Front and rear Fox shocks designed and tuned for the popular Hilux application.
• Rear shocks specifically valved for factory Hilux leaf springs
• Enhanced stability and control across all driving conditions
• Backed by BDS's No Fine Print Warranty
• Factory protection plus drivetrain warranty included.
• Easy, bolt on installation.

Recommended Tires and Wheels:

• (Trimming may be required)
• 285/70 with 16 x 8 and 4.5 in. Backspace
• 285/70 with 17 x 8 and 4.5 in. Backspace

FOX 2.0 Performance Series Snap Ring Strut:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Snap Ring Spring Seat to re-use OEM spring

FOX 2.5 Performance Elite Series Coil-Over:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Performance
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Details:

• Finish: Powdercoat
• Color: Black
• Front Lift Height: 2.0 Inch
• Rear Lift Height: 1.0 Inch
• Lift Height: 2.0 Inch
• Lift Type: Block
• Engine Years: 2016-2023
• Shocks Included: Yes
• Series: Performance Series
• Shock Style: FOX 2.5 Performance Series Shocks
